Precision, performance, and safety, engineered for modern stage automation
12
meter
cable (steel + power + cat5e)
1.2
M/s
Max speed
0 to 90
degrees
max angle control
25
kg
MAx load
Full Network-Based Control
The WX2512 is designed for control over standard entertainment networks like DMX, ArtNet and sACN, allowing operators to manage movement across multiple units from a single interface.
Built-In Safety System

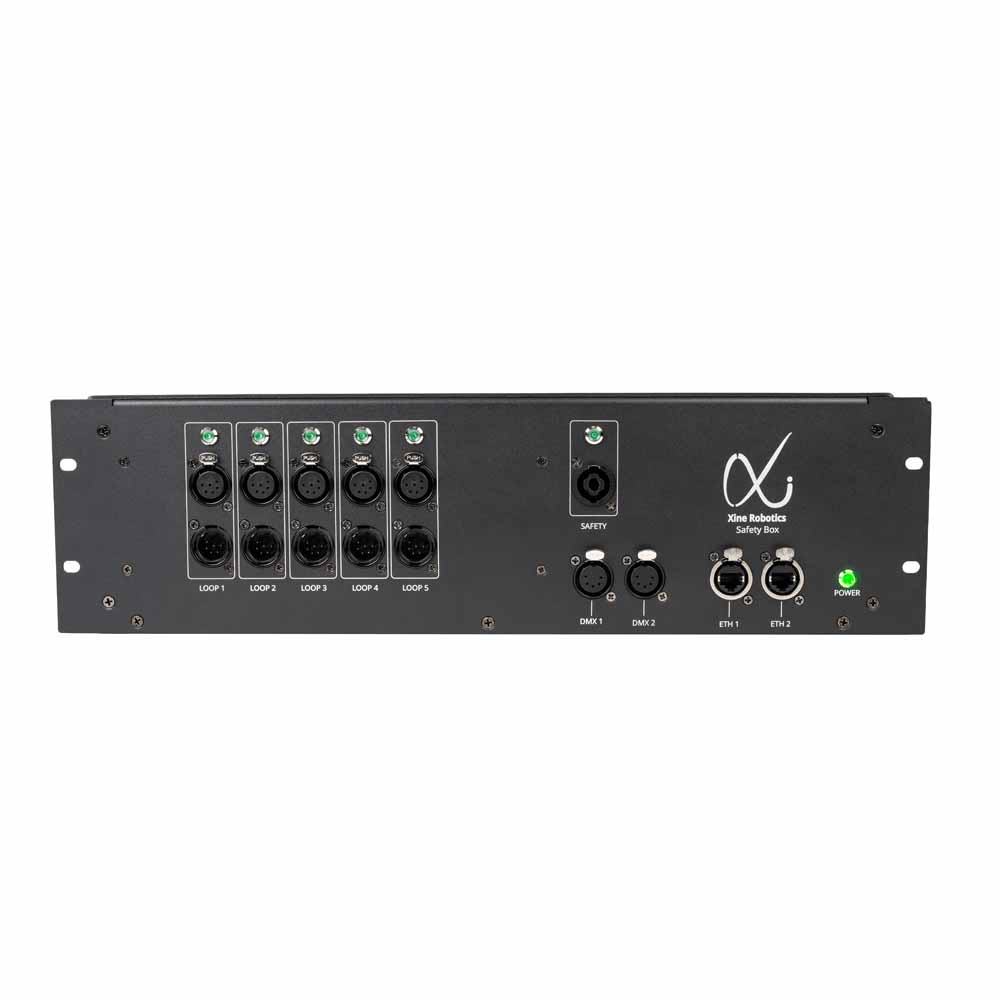

A 24 volt safety loop connects all winches and safety boxes, making sure the system responds immediately to emergency stops and keeps movement locked unless all safety conditions are met.
Accurate Positioning
The motor uses 16-bit DMX resolution, allowing the load to move smoothly in very small steps, even when traveling the full height of 12 meters.
Easy Rigging and Power Distribution

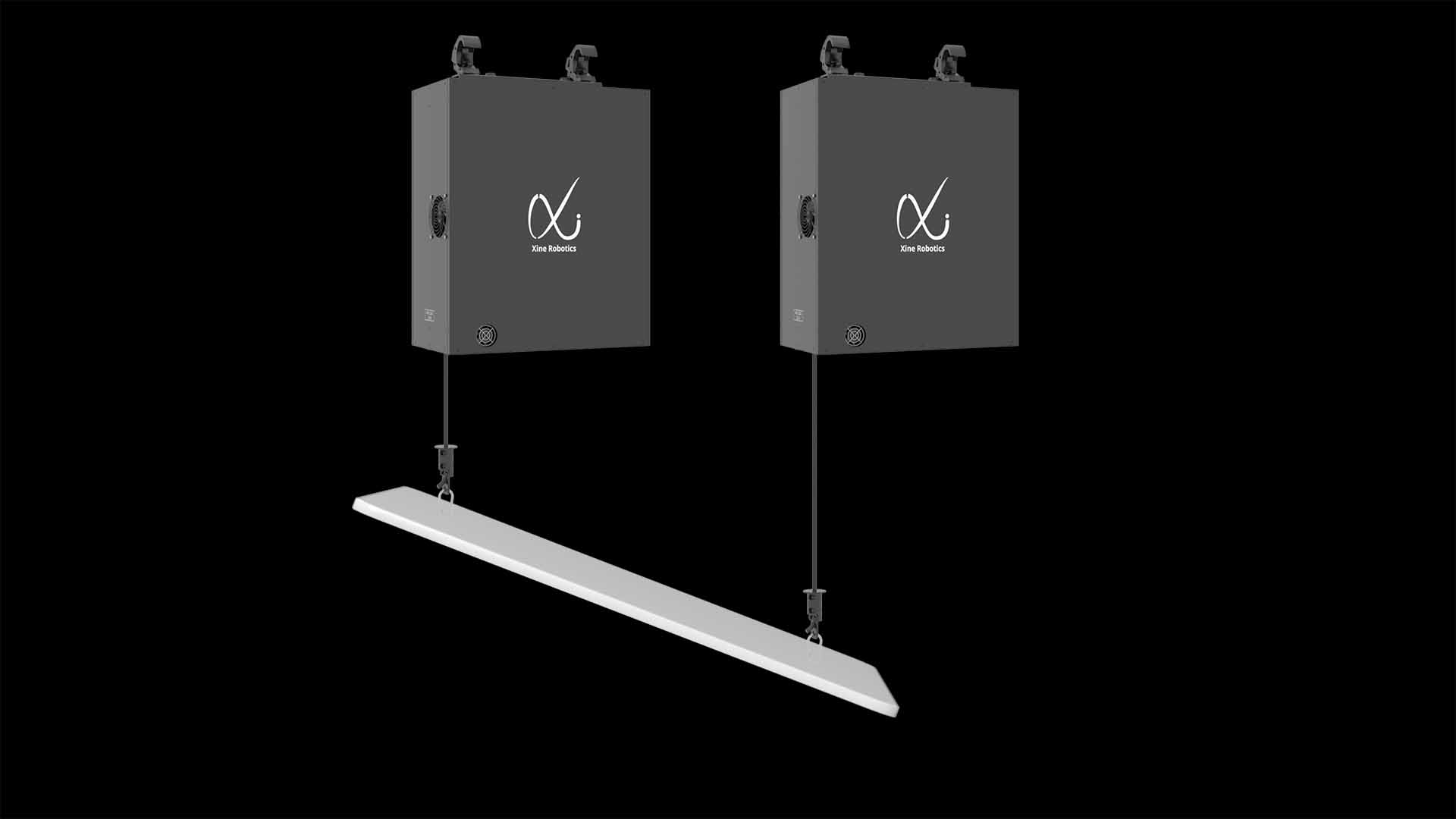

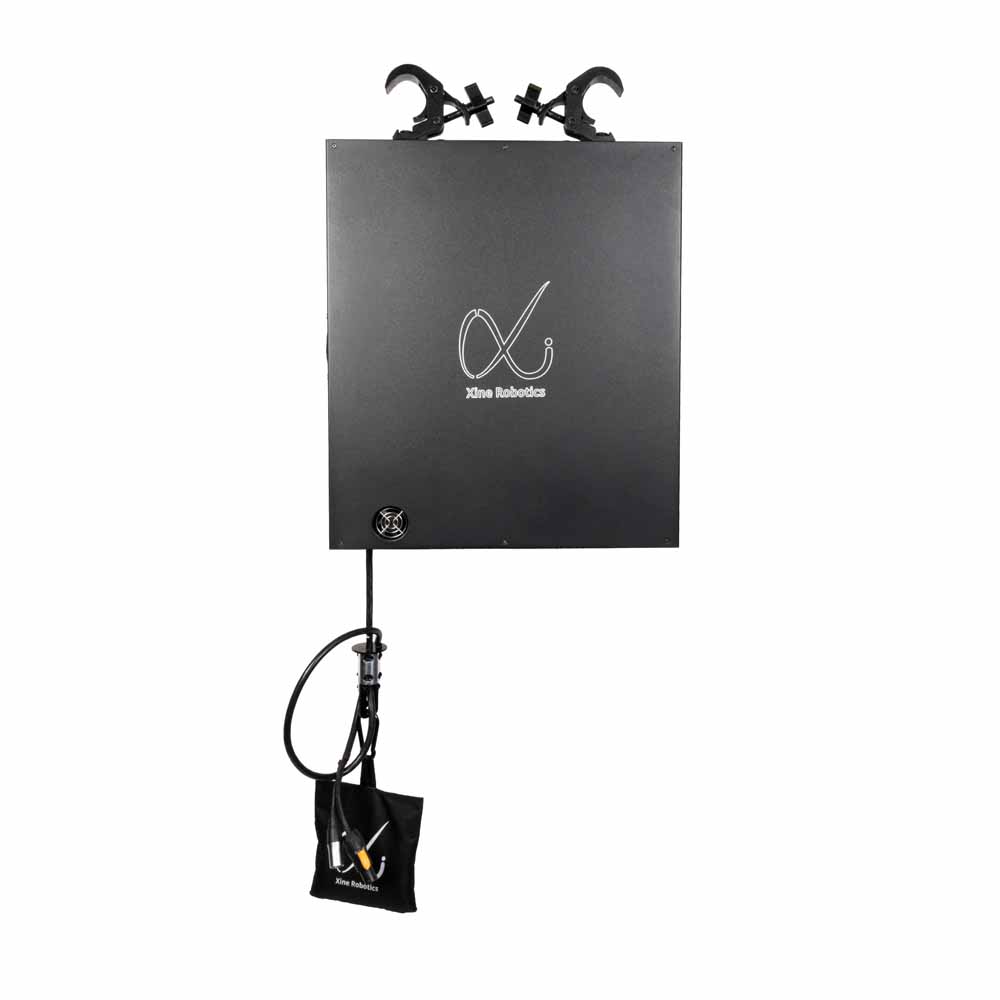

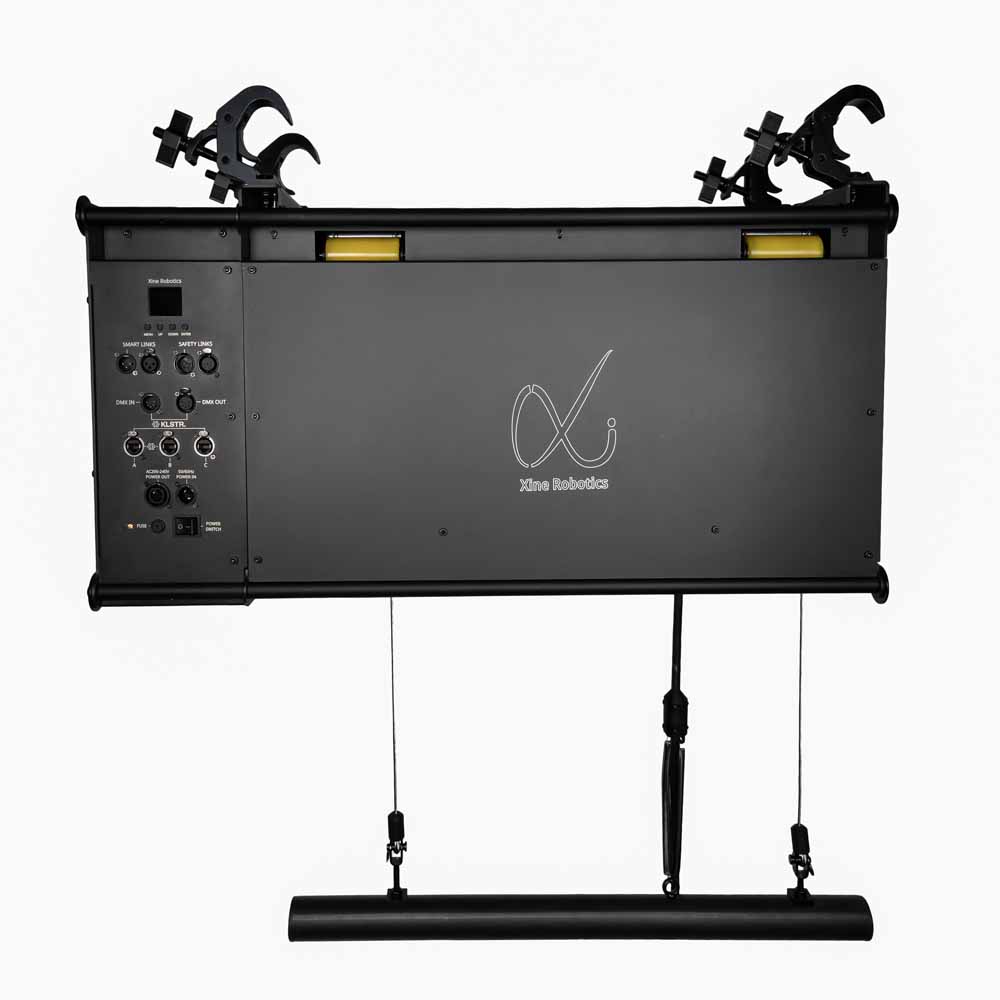

The winch can be mounted on trusses or flat surfaces using standard clamps and includes feed through connectors for both power and data to support fixtures or other devices below.
Powered by KLSTR.one
Smart Control Built In
These winches were co-developed with the developers at KLSTR and are equipped with the KLSTR.one chip. This chip enables a simplified workflow, easy setup, redundancy, and strong control over the system.
Intelligent Safety Integration
Smart Emergency Stop System
Built-In Response for Any Scenario
Our winch systems feature three distinct emergency stop methods to ensure maximum safety during operation. Whether you need immediate shutdown or a controlled stop, the system responds instantly and reliably.
Reliable Data Transmission
Trigger a full system halt by pressing an E-stop button, disconnecting mains power, or interrupting the 24V safety loop. This stops all motion immediately, ideal for emergencies but puts maximum stress on the system.
Soft Stop with DMX Control
For safer, smoother intervention, set the Speed Channel to DMX value 255 or adjust the Motor Enable Channel to the “Motor Disabled” range (DMX 0–120). Both methods trigger a controlled ramp-down, even if applied abruptly.
Whether you're preprogramming cues or reacting live during a show, the WX2512’s safety system ensures reliable control at every stage.
Get the Tools to Set Up and Operate
Everything You Need to Get Started
Find all essential resources for installing, operating, and mastering your WX2512 system. From downloadable manuals to expert-guided setup sessions, it’s all here.
System Setup Components
Interested in the full system setup for your WX2512 installation? Get in touch with us to discuss the required components tailored to your setup.
Need detailed technical info on installation, configuration, and safety? Download the official WX2512 user manual directly from our website and get started with everything you need to know.
Want to operate the WX2512 system with full confidence? Reach out to receive the detailed operation guidelines, including best practices for safety, control setup, and live use.
